LY3 Small Auto Electric Motor Relay

FOB Reference Price:Get Latest Price
US $0.78-0.8 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
20000 Piece/Pieces per Month
Port:
SHANGHAI,NINGBO
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
CNSN
Model Number:
LY3
Theory:
Electromagnetic Relay
Usage:
General Purpose
Size:
Miniature
Protect Feature:
Sealed
Contact Load:
Low Power
Coil Voltage:
6 - 220V DC, 6 - 380V AC
Ontact Form:
3Z
Cantact Capacity:
10A250VAC/28VDC
Contact Resistance:
50MΩ(1A 6VDC)
Insulation Resistance:
500MΩ,500VDC
Terminal Type:
PCB& Socket
Dimensions(mm):
27.5*31*35
Weight:
53g
Packaging & Delivery
Packaging Details
10Pcs/Box 500Pcs/Cartons
Standard corrugated carton or customized as you requested.
Delivery Time
Shipped in 15 days after payment

LY3 Small Auto Electric Motor Relay



Product Description

- Small universal relay capable of large power switch
- Applications
  Switch control for air-conditioning compressor
  Switch control for electric tools and a variety of motor
  Switch control for heater power control
  Switch control for a variety of drying machine power control
  Switch control for controlling various lights
  Switch control for packaging machines, food processing equipment, power control
- Low power consumption
- Rugged Design
- Silver alloy contacts
- Multiple type relay
  LY3:Standard models
  LY3-S: With manual test button function
  LY3-N: With operation indicators
  LY3-F: With button
  LY3-D: With built-in diodes
  LY3-O: With PCB Terminals
- Power Supply
  AC(V) 6,12,24,48,60,110,220,240,380 50Hz
  DC(V) 6,12,24,48,60,110,220
- Output Contacts rated 10A at 250 VAC or 30 VDC
- Three pole changeover contacts
- Socket mounted with a PT11 Socket(Except LY3-O)



Technical Data:

Dimensions(mm)27.5×31×35
Contact form3Z
Contact  capacity10A at 250 VAC or 30 VDC
Coil voltageAC(V) 6,12,24,48,60,110,220,240,380 50Hz
 DC(V) 6,12,24,48,60,110,220
Coil powerDC:≤ 0.9W   AC: ≤ 1.2VA
Pick-upDC:≤ 75%   AC: ≤ 80%
Drop-outDC: ≥10%   AC: ≥ 30%
Contact resistance≤ 50mΩ
Resistance insulation≥ 100MΩ(DC 500V)
Life      Electrical           1×105times
 Mechanical           5×106times
Dielectric strength  Between open contacts :1000VAC rms
 Between coil & contacts :1500VAC rms
Mounting formPCB & Socket
Ambient temperature-25℃~+55℃
Weight 53g
Similar productsHH63P
Fitted  socket PF11, PTF11A

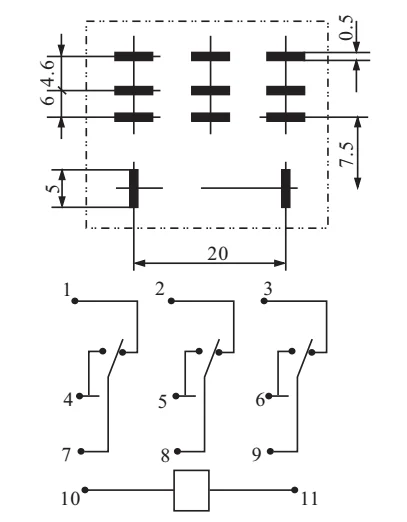

Dimension.Bottom View
