LY3 220V 10A General Purpose Relay

FOB Reference Price:Get Latest Price
US $0.78-0.8 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
20000 Piece/Pieces per Month
Port:
SHANGHAI,NINGBO
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
CNSN
Model Number:
LY3
Theory:
Electromagnetic Relay
Usage:
General Purpose
Size:
Miniature
Protect Feature:
Sealed
Contact Load:
Low Power
Coil Voltage:
6 - 220V DC, 6 - 380V AC
Ontact Form:
3Z
Cantact Capacity:
10A250VAC/28VDC
Contact Resistance:
50MΩ(1A 6VDC)
Insulation Resistance:
500MΩ,500VDC
Terminal Type:
PCB& Socket
Dimensions(mm):
27.5*31*35
Weight:
53g
Packaging & Delivery
Packaging Details
10Pcs/Box 500Pcs/Cartons
Standard corrugated carton or customized as you requested.
Delivery Time
Shipped in 15 days after payment

LY3 220V 10A General Purpose Relay



Product Description

Contact Ratings
Contact Ratings
2Z,3Z
4Z
Contact Resistance
50mΩ (1A 6VDC)
Contact capacity
5A/220VAC
3A/220VAC 30VDC

Specification
Insulation Resistance
500MΩ, 500VDC
Dielectric Strength
BCC 1500VAC 1minute
BOC 1000VAC 1minute
COC 1500VAC 1minute
Operate Time
20ms /25ms
Terminal Type
PCB & Socket

Coil Ratings
Nominal Coil Power
0.9W / 1.2VA

Coil Versions
Nominal Voltage VDC
Pull-in Voltage
VDC
Release Voltage
VDC
Coil ResistanceΩ:±10%
5
4.0
0.50
30
6
4.8
0.60
40
12
9.6
1.20
160
24
19.2
2.40
640
48
38.4
4.80
2500
110
88.0
11.0
12100


Coil Versions
Nominal Voltage VDC
Pull-in Voltage
VDC
Release Voltage
VDC
Coil ResistanceΩ:±10%
6
4.80
1.80
12
12
9.60
3.60
42
24
19.2
7.20
168
48
38.4
14.4
675
110
96.0
36.0
3500
220/240
176.0
66.0
14000

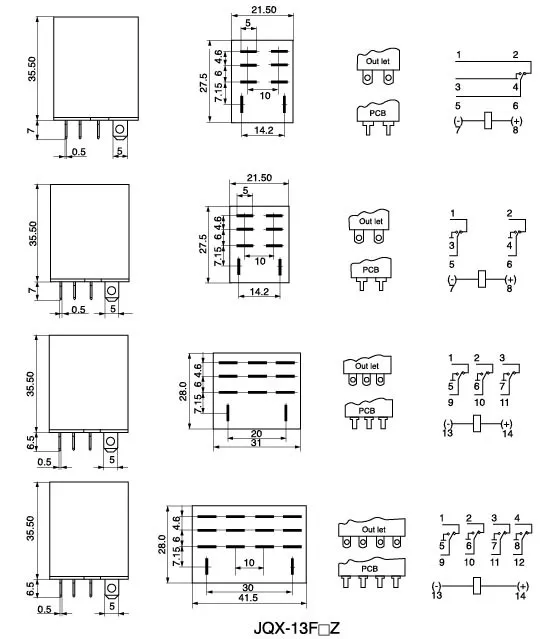

Dimension.Bottom View

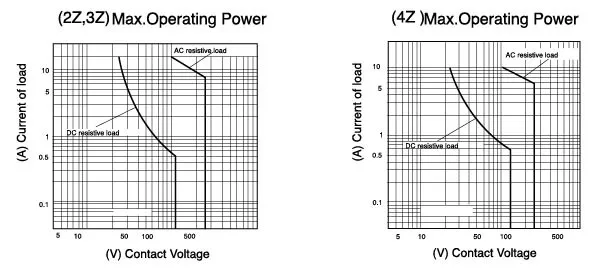

Reference Data



Socket Type PTF11A
